Product Portfolio | Gui Sound

A.

Full Range Driver

15 models

Full-spectrum transducers covering bass to treble in a single driver unit.

MODEL	SUB-CAT	SIZE	IMPEDANCE	F₀	FREQ RANGE	S.P.L.	POWER	SPEC

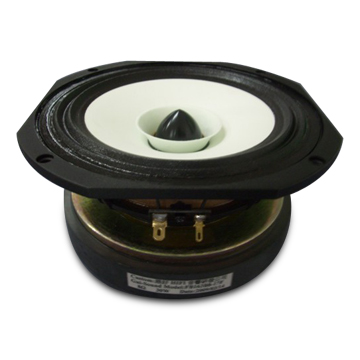

FB163B8-17F	6.5 inch	6 inch	8 Ohm	18 Hz	55 kHz	93.7 dB	30 W	PDF
FB166B8-15FG	6.5 inch	6 inch	8 Ohm	54 Hz	20 kHz	94 dB	30 W	PDF

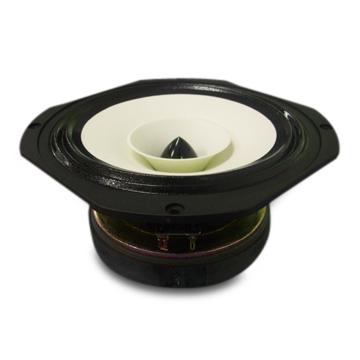

FB202B8-18F	8 inch	8 inch	8 Ohm	43 Hz	18 kHz	95.53 dB	30 W	PDF

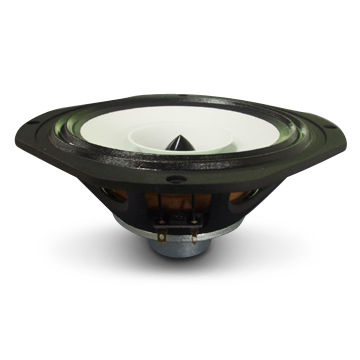

UB202B8-16F	8 inch	8 inch	8 Ohm	3 Hz	18 kHz	91.1 dB	20 W	PDF
FR222B8-11F	8 inch	8 inch	8 Ohm	42 Hz	18 kHz	96.505 dB	30 W	PDF
FB208B8-11F	8 inch	8 inch	8 Ohm	39 Hz	18 kHz	97.723 dB	30 W	PDF
FR278B8-11F	10 inch	10 inch	8 Ohm	40 Hz	15 kHz	95.489 dB	60 W	PDF
FR330B8-11F	12 inch	12 inch	8 Ohm	34 Hz	17 kHz	95.553 dB	30 W	PDF
UB57B4-15F	4 inch	2 inch	4 Ohm	154 Hz	20 kHz	85.4 dB	5 W	PDF

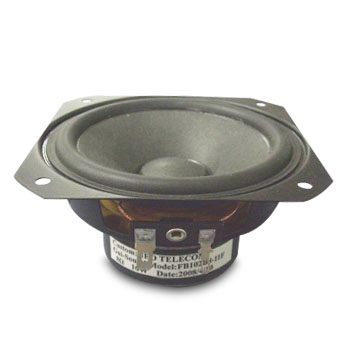

FB102B8-11F	4 inch	4 inch	8 Ohm	73 Hz	15 kHz	84 dB	10 W	PDF

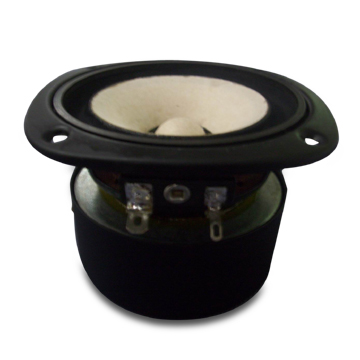

HP89B8-14F	4 inch	4 inch	8 Ohm	196 Hz	25 kHz	87.199 dB	10 W	PDF

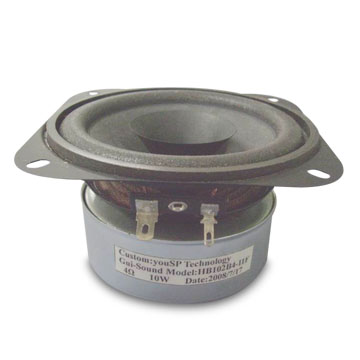

HB102B4-11F	4 inch	4 inch	4 Ohm	85 Hz	18 kHz	88 dB	10 W	PDF

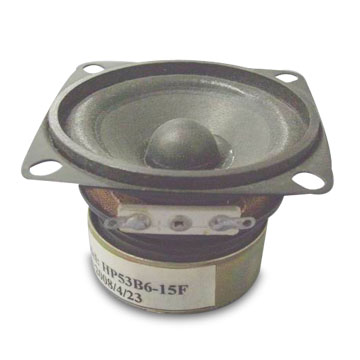

HP53B6-15F	2.5 inch	2 inch	6 Ohm	250 Hz	20 kHz	84 dB	5 W	PDF
HB79B4-11F	2.5 inch	3 inch	4 Ohm	15 Hz	79 kHz	83 dB	10 W	PDF

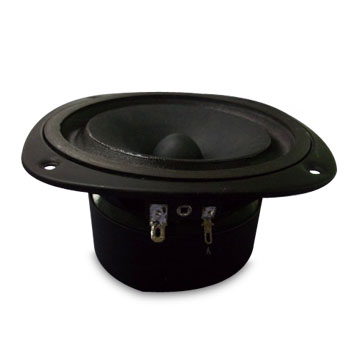

HP132B4-11F	5 inch	5 inch	4 Ohm	70 Hz	15 kHz	90.44 dB	15 W	PDF

B.

Wooden Cone Driver

8 models

Natural wood fiber cones delivering warm, organic acoustic character.

MODEL	SUB-CAT	SIZE	IMPEDANCE	F₀	FREQ RANGE	S.P.L.	POWER	SPEC
FR179B8-11M	7 inch	7 inch	8 Ohm	42 Hz	15 kHz	92.609 dB	30 W	PDF
HR124B8-10L	4 inch	4 inch	8 Ohm	70 Hz	12 kHz	88.92 dB	20 W	PDF
FR124B8-11M	4 inch	4 inch	8 Ohm	72 Hz	13 kHz	88.124 dB	10 W	PDF
FR137B6-18M	5 inch	5 inch	6 Ohm	48 Hz	12 kHz	84.521 dB	20 W	PDF
FR151B4-11M	5.5 inch	6 inch	4 Ohm	38 Hz	10 kHz	88.772 dB	30 W	PDF
FP89B8-13M	3.5 inch	4 inch	8 Ohm	71 Hz	15 kHz	84.324 dB	10 W	PDF
FR50W4-12F	2 inch	2 inch	4 Ohm	190 Hz	16 kHz	80 dB	2 W	PDF
FB70B4-11F	2 inch	2 inch	4 Ohm	120 Hz	20 kHz	80 dB	3 W	—

FR179B8-11M

Size 7 inch Impedance 8 Ohm S.P.L. 92.609 dB Power 30 W

HR124B8-10L

Size 4 inch Impedance 8 Ohm S.P.L. 88.92 dB Power 20 W

FR124B8-11M

Size 4 inch Impedance 8 Ohm S.P.L. 88.124 dB Power 10 W

FR137B6-18M

Size 5 inch Impedance 6 Ohm S.P.L. 84.521 dB Power 20 W

FR151B4-11M

Size 6 inch Impedance 4 Ohm S.P.L. 88.772 dB Power 30 W

FP89B8-13M

Size 4 inch Impedance 8 Ohm S.P.L. 84.324 dB Power 10 W

FR50W4-12F

Size 2 inch Impedance 4 Ohm S.P.L. 80 dB Power 2 W

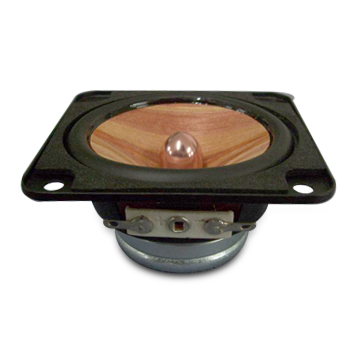

FB70B4-11F

Size 2 inch Impedance 4 Ohm S.P.L. 80 dB Power 3 W

C.

Coaxial Driver

2 models

Concentric driver assemblies for uniform point-source dispersion.

IMAGE	MODEL	SUB-CAT	SIZE	IMPEDANCE	F₀	FREQ RANGE	S.P.L.	POWER	SPEC
	FR173B6-15F	6.5 inch	6 inch	6 Ohm	34 Hz	10 kHz	90.442 dB	20 W	PDF
	FR179B6-12F	7 inch	7 inch	6 Ohm	42 Hz	8 kHz	91.097 dB	20 W	PDF

FR173B6-15F

Size 6 inch Impedance 6 Ohm S.P.L. 90.442 dB Power 20 W

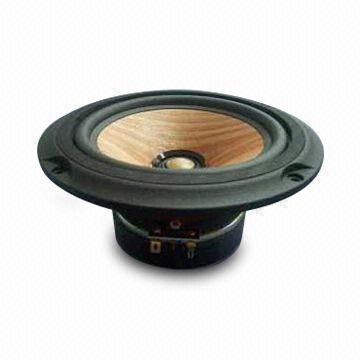

FR179B6-12F

Size 7 inch Impedance 6 Ohm S.P.L. 91.097 dB Power 20 W

D.

Woofer Driver

12 models

Dedicated low-to-mid frequency drivers with high excursion capability.

MODEL	SUB-CAT	SIZE	IMPEDANCE	F₀	FREQ RANGE	S.P.L.	POWER	SPEC
HP105B4-11M	4 inch	4 inch	4 Ohm	82 Hz	8 kHz	86.214 dB	15 W	PDF
FR148B6-23L	5 inch	5 inch	6 Ohm	34.3 Hz	12 kHz	84.9 dB	30 W	PDF
FR137B6-22M	5 inch	5 inch	6 Ohm	46 Hz	12 kHz	87.069 dB	20 W	PDF
HR145B8-12L	5 inch	5 inch	8 Ohm	60 Hz	12 kHz	89.436 dB	30 W	PDF
FR173B4-18L	6.5 inch	6 inch	4 Ohm	39 Hz	8 kHz	87.9 dB	20 W	PDF
FR173B8-18M	6.5 inch	6 inch	8 Ohm	32 Hz	10 kHz	85.334 dB	30 W	PDF
FR173B6-10M	6.5 inch	6 inch	6 Ohm	44 Hz	10 kHz	87.811 dB	30 W	PDF
FR205B16-11M	8 inch	8 inch	16 Ohm	46 Hz	7 kHz	85.853 dB	50 W	PDF
FR222B6-13M	8 inch	8 inch	6 Ohm	37 Hz	5 kHz	88.007 dB	30 W	PDF
FR158B6-12L	6 inch	6 inch	6 Ohm	66 Hz	10 kHz	87.36 dB	35 W	PDF

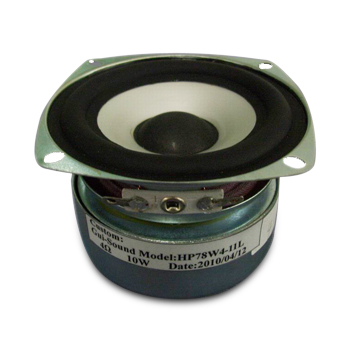

HP78W4-11L	3 inch	3 inch	4 Ohm	20 Hz	124 kHz	85.4 dB	10 W	PDF

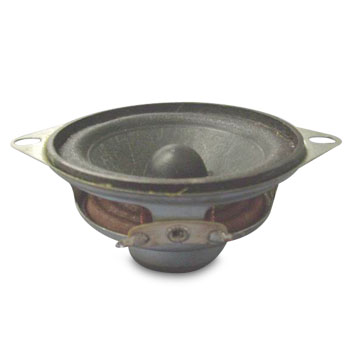

UE52W4-11M	2 inch	2 inch	4 Ohm	210 Hz	20 kHz	83 dB	5 W	PDF

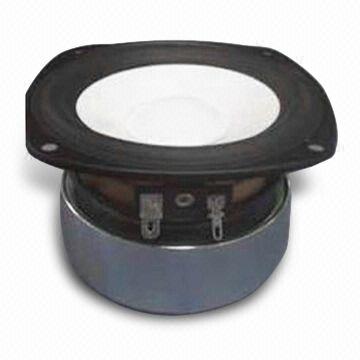

HP105B4-11M

Size 4 inch Impedance 4 Ohm S.P.L. 86.214 dB Power 15 W

FR148B6-23L

Size 5 inch Impedance 6 Ohm S.P.L. 84.9 dB Power 30 W

FR137B6-22M

Size 5 inch Impedance 6 Ohm S.P.L. 87.069 dB Power 20 W

HR145B8-12L

Size 5 inch Impedance 8 Ohm S.P.L. 89.436 dB Power 30 W

FR173B4-18L

Size 6 inch Impedance 4 Ohm S.P.L. 87.9 dB Power 20 W

FR173B8-18M

Size 6 inch Impedance 8 Ohm S.P.L. 85.334 dB Power 30 W

FR173B6-10M

Size 6 inch Impedance 6 Ohm S.P.L. 87.811 dB Power 30 W

FR205B16-11M

Size 8 inch Impedance 16 Ohm S.P.L. 85.853 dB Power 50 W

FR222B6-13M

Size 8 inch Impedance 6 Ohm S.P.L. 88.007 dB Power 30 W

FR158B6-12L

Size 6 inch Impedance 6 Ohm S.P.L. 87.36 dB Power 35 W

HP78W4-11L

Size 3 inch Impedance 4 Ohm S.P.L. 85.4 dB Power 10 W

UE52W4-11M

Size 2 inch Impedance 4 Ohm S.P.L. 83 dB Power 5 W

E.

PA-Speaker Driver

3 models

Professional audio drivers built for high-SPL live sound applications.

MODEL	SUB-CAT	SIZE	IMPEDANCE	F₀	FREQ RANGE	S.P.L.	POWER	SPEC
FR205B8-16L	8 inch	8 inch	8 Ohm	39 Hz	3.5 kHz	88.1 dB	50 W	PDF
FR385B8-12W	15 inch	15 inch	8 Ohm	24 Hz	4 kHz	96 dB	240 W	PDF
FR460B4-10L	18 inch	18 inch	4 Ohm	25 Hz	3 kHz	96.626 dB	400 W	PDF

FR205B8-16L

Size 8 inch Impedance 8 Ohm S.P.L. 88.1 dB Power 50 W

FR385B8-12W

Size 15 inch Impedance 8 Ohm S.P.L. 96 dB Power 240 W

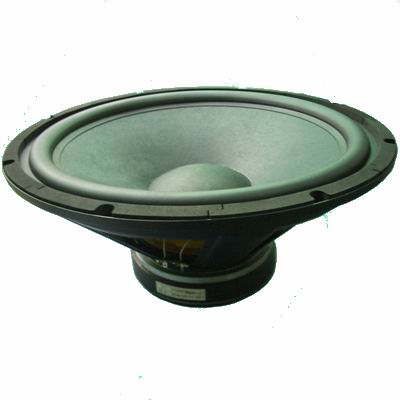

FR460B4-10L

Size 18 inch Impedance 4 Ohm S.P.L. 96.626 dB Power 400 W

F.

Dome Tweeter

7 models

Silk and aluminum dome tweeters for smooth high-frequency reproduction.

MODEL	SUB-CAT	SIZE	IMPEDANCE	F₀	FREQ RANGE	S.P.L.	POWER	SPEC

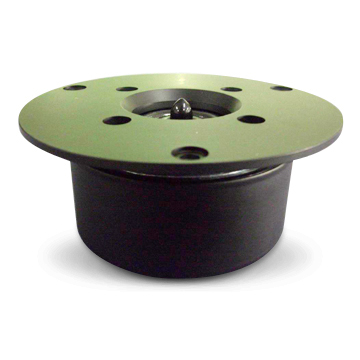

FR99B4-10T	0.8 inch	1 inch	4 Ohm	776 Hz	44 kHz	88 dB	20 W	PDF
UR45B6-11T	0.8 inch	1 inch	6 Ohm	2000 Hz	25 kHz	91 dB	20 W	PDF
FR110B6-12T	1 inch	1 inch	6 Ohm	1400 Hz	40 kHz	92 dB	20 W	PDF
HR110B6-11T	1 inch	1 inch	6 Ohm	530 Hz	40 kHz	90 dB	20 W	PDF
FR100B6-15T	1 inch	1 inch	6 Ohm	89 Hz	25 kHz	90 dB	20 W	PDF

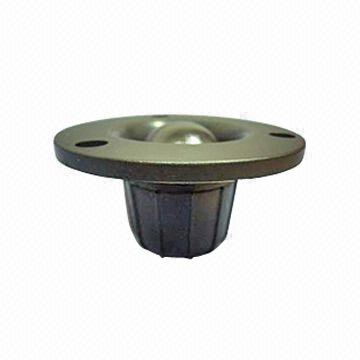

UR74B4-13T	1 inch	1 inch	4 Ohm	800 Hz	25 kHz	90 dB	15 W	PDF

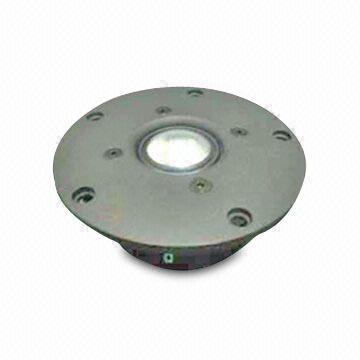

HR104B8-16T	1.1 inch	1 inch	8 Ohm	500 Hz	27 kHz	90 dB	20 W	PDF

FR99B4-10T

Size 1 inch Impedance 4 Ohm S.P.L. 88 dB Power 20 W

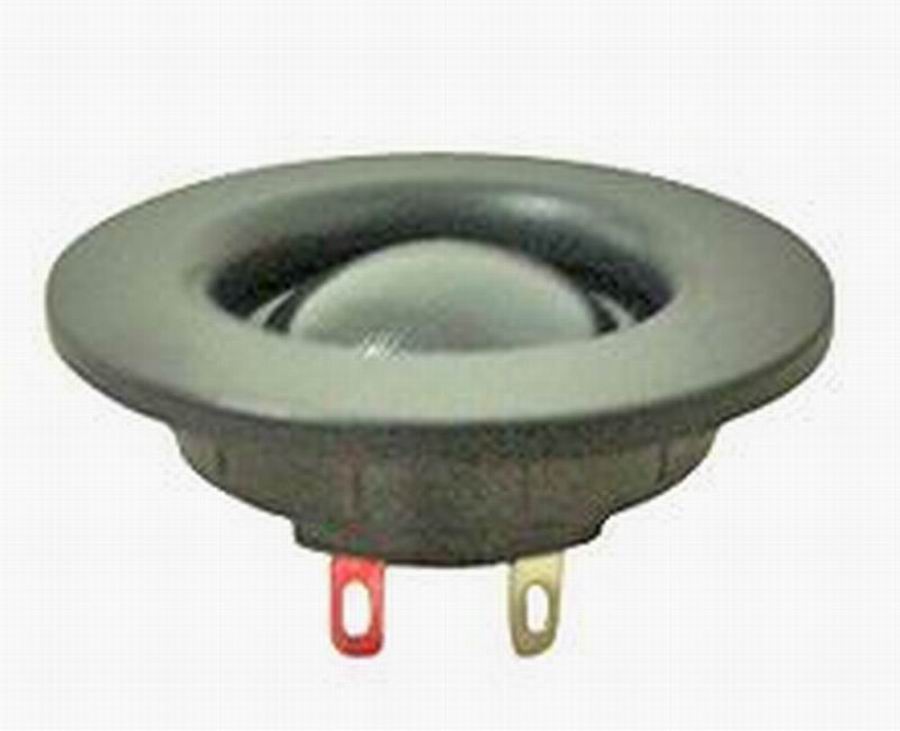

UR45B6-11T

Size 1 inch Impedance 6 Ohm S.P.L. 91 dB Power 20 W

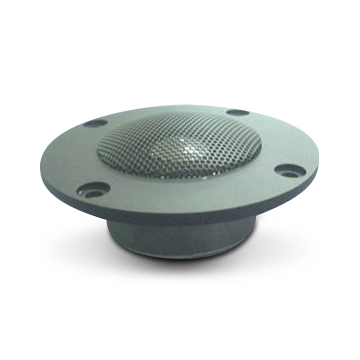

FR110B6-12T

Size 1 inch Impedance 6 Ohm S.P.L. 92 dB Power 20 W

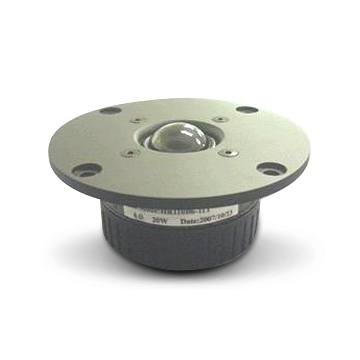

HR110B6-11T

Size 1 inch Impedance 6 Ohm S.P.L. 90 dB Power 20 W

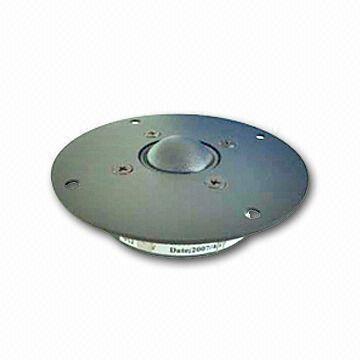

FR100B6-15T

Size 1 inch Impedance 6 Ohm S.P.L. 90 dB Power 20 W

UR74B4-13T

Size 1 inch Impedance 4 Ohm S.P.L. 90 dB Power 15 W

HR104B8-16T

Size 1 inch Impedance 8 Ohm S.P.L. 90 dB Power 20 W

G.

Horn Tweeter

3 models

Horn-loaded tweeters for high-efficiency directional HF output.

MODEL	SUB-CAT	SIZE	IMPEDANCE	F₀	FREQ RANGE	S.P.L.	POWER	SPEC
FR70B8-10T	1 inch	1 inch	8 Ohm	2000 Hz	25 kHz	95 dB	35 W	PDF
HR94B6-11T	1 inch	1 inch	6 Ohm	400 Hz	20 kHz	91 dB	20 W	PDF
FB188*79B8-10T	7×3 inch	7×3 inch	8 Ohm	2000 Hz	20 kHz	104 dB	35 W	PDF

FR70B8-10T

Size 1 inch Impedance 8 Ohm S.P.L. 95 dB Power 35 W

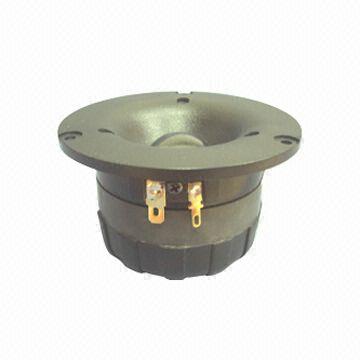

HR94B6-11T

Size 1 inch Impedance 6 Ohm S.P.L. 91 dB Power 20 W

FB188*79B8-10T

Size 7×3 inch Impedance 8 Ohm S.P.L. 104 dB Power 35 W

H.

Micro Speaker

3 models

Ultra-compact transducers for mobile devices and IoT applications.

MODEL	SUB-CAT	SIZE	IMPEDANCE	F₀	FREQ RANGE	S.P.L.	POWER	SPEC
UR36B8-10F	Phone speaker	1 inch	8 Ohm	430 Hz	5 kHz	82 dB	1.5 W	PDF

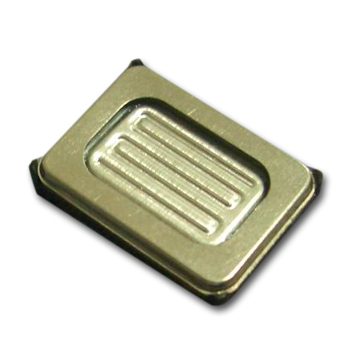

UY1511W8-10F	Phone speaker	15×11 mm	8 Ohm	800 Hz	7 kHz	94 dB	1 W	PDF
UY2014B8-10F	Phone speaker	20×14 mm	8 Ohm	900 Hz	20 kHz	100 dB	0.5 W	PDF

UR36B8-10F

Size 1 inch Impedance 8 Ohm S.P.L. 82 dB Power 1.5 W

UY1511W8-10F

Size 15×11 mm Impedance 8 Ohm S.P.L. 94 dB Power 1 W

UY2014B8-10F

Size 20×14 mm Impedance 8 Ohm S.P.L. 100 dB Power 0.5 W
